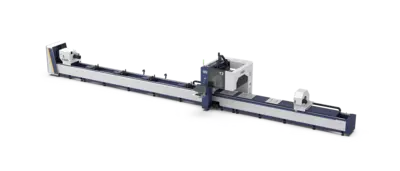

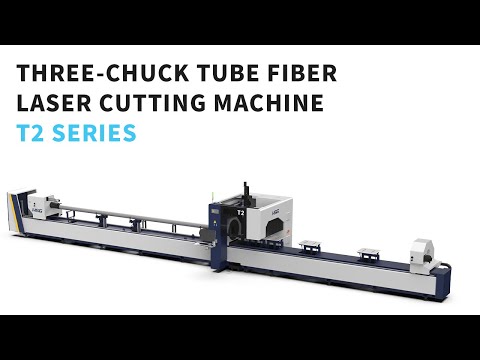

HSG T2 Three-chuck Tube Fiber Laser Cutting Machine
Have one to sell?
ConditionNew
New
Independent Servo Follow-up Support
Both loading and unloading positions are equipped with highly sensitive and independent servo follow-up support to ensure stable tube cutting and enhance cutting precision.
Fully Portable Three Chucks
* Fully portable three chucks structure for easy short-tailing cutting.
* The chucks are designed as two chucks are front and one chuck is rear to achieve more load.
* C3 chuck is the hollow chuck leading to blanking of complete tube.
* Standard equipped with 240mm rectangular-circle chucks and the clamping ability of rectangular tube is improved.
Intelligent Bus Operating System
* Various auxiliary functions of tube laser cutting machines to satisfy multiple processing demand
* T2 series is equipped with professional nesting software to achieve efficient management of production progress and price calculations.
Power 3000W-6000W
X/Y-axis Positioning Accuracy ±0.03mm/m
Cutting Capacity of Round Tube Φ20-Φ240mm
Cutting Capacity of Square Tube 20*20-240*240mm
Weight of Single Tube 300kg
