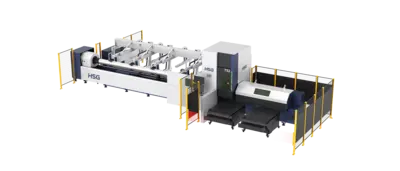

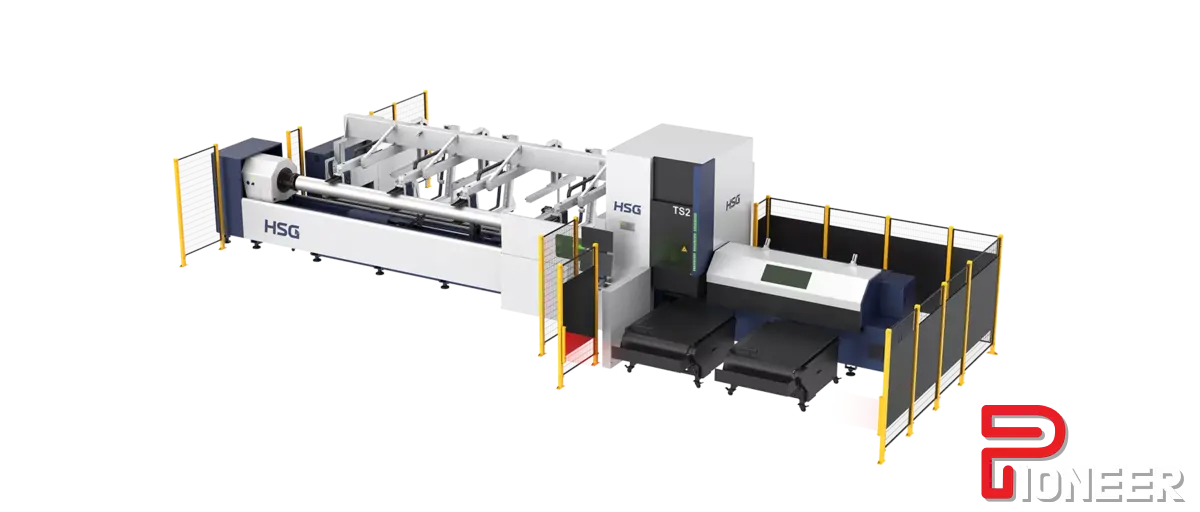

HSG TS2 High-performance Tube Fiber Laser Cutting Machine

Description

Fast Cutting

The max linkage speed is 140m/min, the acceleration is 1.4G, and the chuck rotation speed is 140r/min. Dramatically shorten the delivery cycle with high-efficiency cutting.

Dynamic Chuck

Two digital intelligent chuck as standard, automatically identify tube size and adjust air pressure and clamping force within 2 seconds.
At the same time, the rear chuck is equipped with air and dust suction functions, making the workpiece tube cleaner and maintaining a clean processing environment.

Capability of Multiple Tube Processing

Standard configuration includes two clamps for tubes and profiles, capable of processing tubes with a weight of ≤ 300kg and a diameter range of 12-273mm for round tubes. It also supports cutting profiles such as channel steel, angle steel, and I-beams.

Dynamic Unloading

Intelligent adjustment of position based on the length of the workpiece with one follow-up flip board and two follow-up concave wheels, providing stable support during cutting process.

Dynamic Support

The machine is equipped with highly sensitive and independent servo follow-up support to ensure stable tube cutting and enhance cutting precision.

HSG-X Intelligent Bus Operating System

Clear interface is convenient for users operating and shows cutting data in real time to save time and costs.
A number of core functions are shown centrally on the interface to reduce operating steps and users can easily learn to operate.

Dynamic Seamline

Combining AI training models to accurately identify and avoid cutting tube welds, thereby reducing scrap rates.
