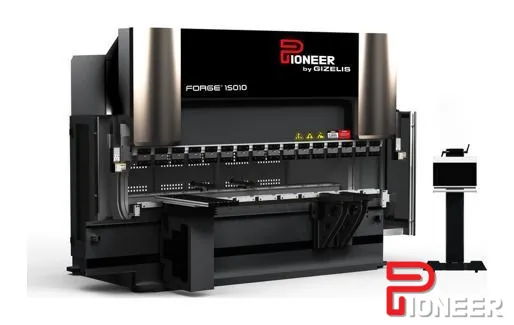

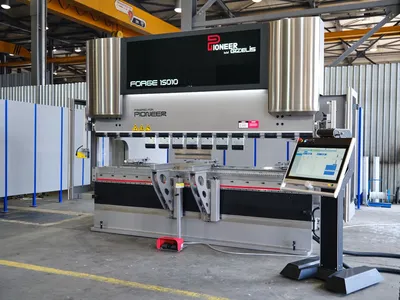

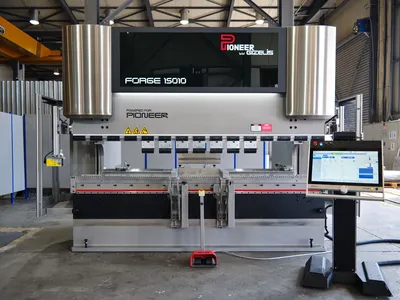

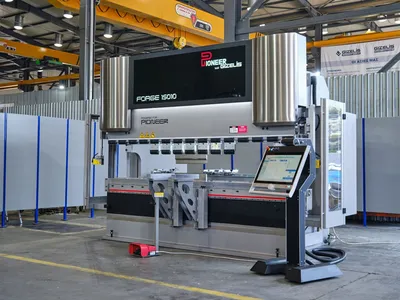

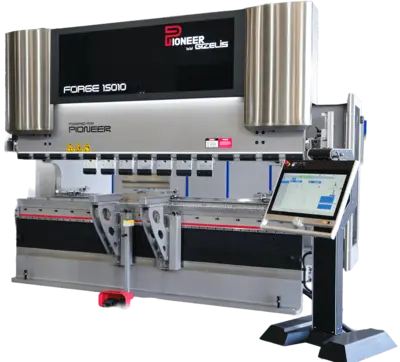

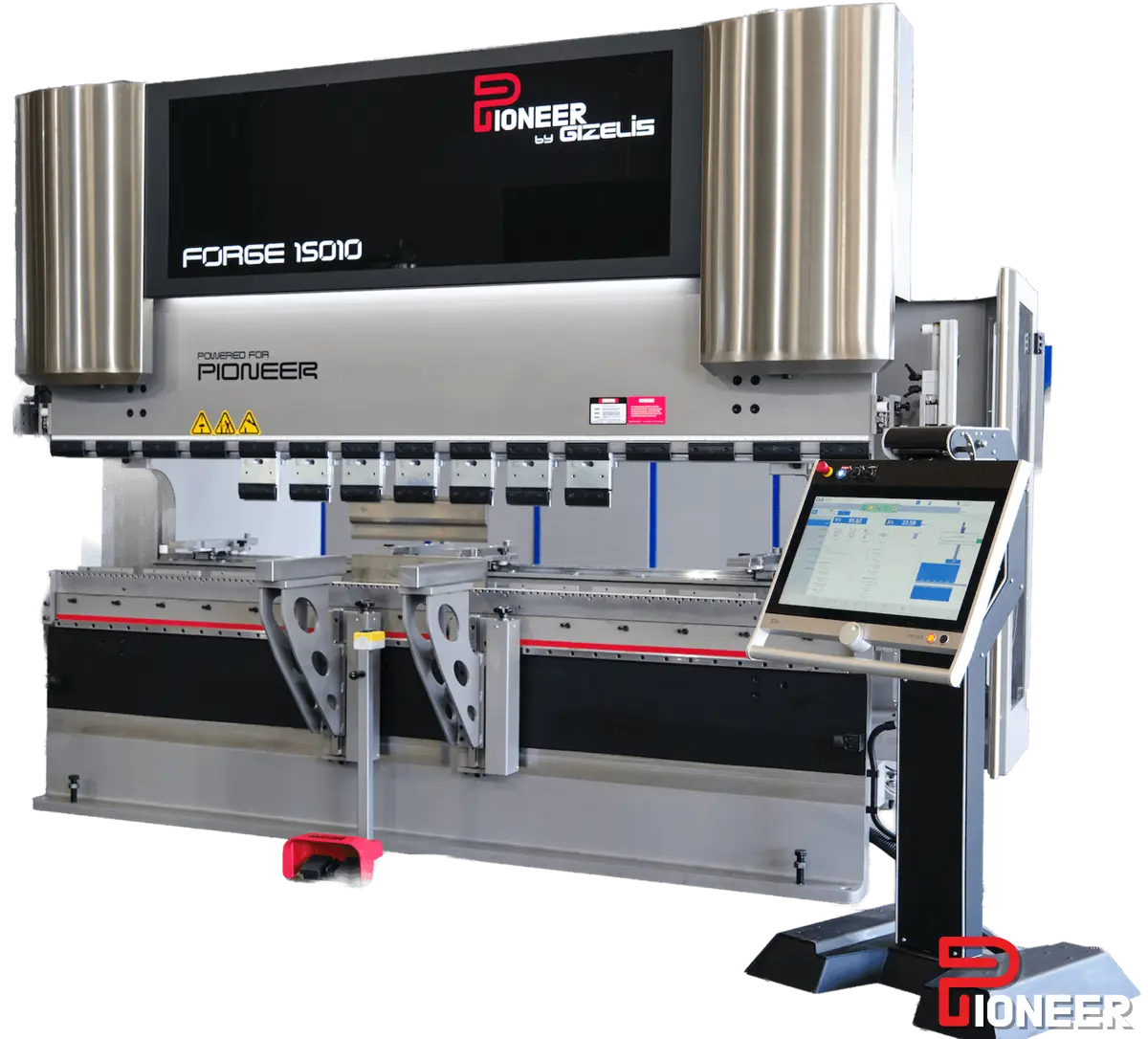

The Pioneer Forge 15010 is a 150 US-ton × 10 ft standard hydraulic CNC press brake — the workhorse of the Pioneer Forge line. It sits between the 8 ft and 12 ft Forge frames and is the pick for shops that need ~10 ft of bending length with 150 tons of force at a value price point. Same frame, dual-axis closed-loop hydraulics, and premium European components as the dual-servo Titan line — with conventional proportional-valve hydraulics for a lower cost of entry.
Bending force 150 US tons
Working (bending) length 10.17 ft
Distance between uprights 8.37 ft
Throat depth 15.75"
Daylight (open height) 20.28"
Punch stroke 11.02"
Table width 4.65"
Fast (approach) speed 0–6.30 in/sec
Working speed 0–0.79 in/sec (CE-limited — see §8)
Return (upstroke) speed 0–5.52 in/sec
Max hydraulic pressure 275 bar (~3,990 psi)
Main motor 15 kW
Machine weight 22,000 lb
Overall dimensions (L × W × H) 13.12 × 5.90 × 8.86 ft
Conformity CE
Standard Features
• Delem DA-66S 2D graphical CNC control (see §5)

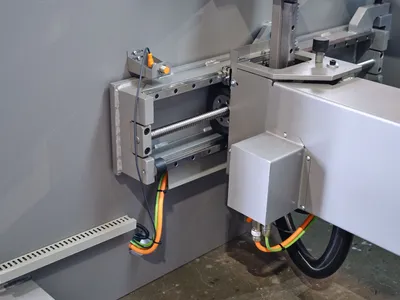

• 2-axis X-R back gauge
• CNC crowning

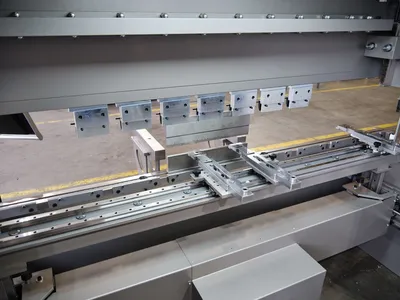

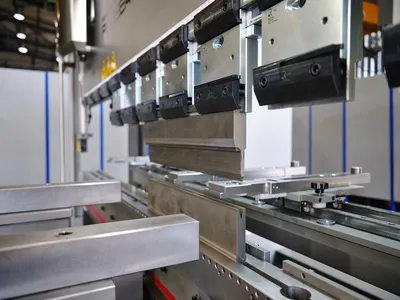

• Universal clamping — accepts both European and American punches

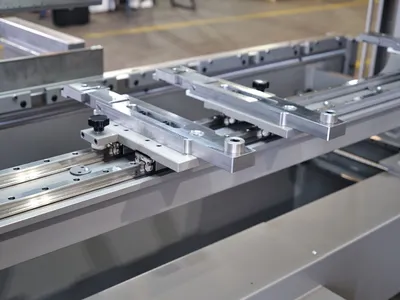

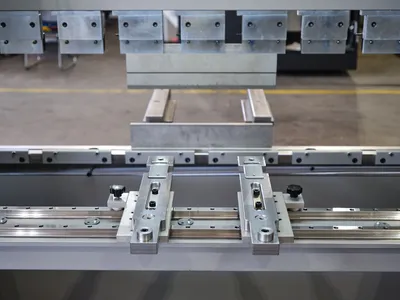

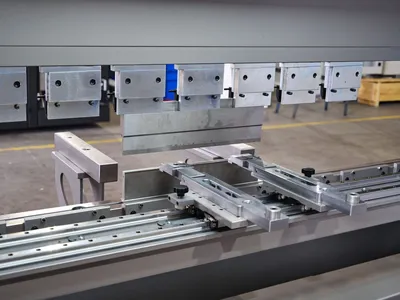

• 2 movable front supports

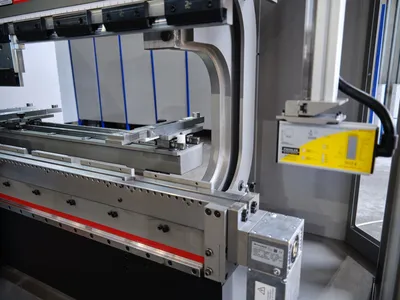

• AKAS laser safety system (Fiessler, Germany — AKAS-5 on this model per the offer sheet)

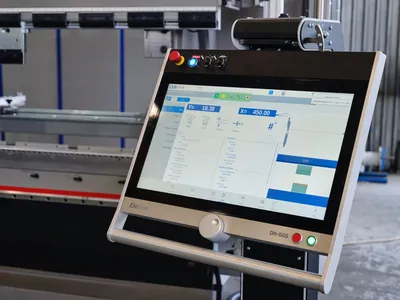

Control — Delem DA-66S
• Full-width widescreen touchscreen; hand wheel, start/stop, 2 USB ports.
• 2D graphical product drawing on-screen (sketch with a finger, then type exact values) plus DXF import/export.
• Automatic bend-sequence computation for minimum production time, with collision visualization of product against tools and machine.
• Auto-computation of force, Y-axis, decompression, back-gauge positions, blank length, and production-time estimate.
• Product library with thumbnails; Job List for shop-floor scheduling.
• Per-material corrections / angle-correction database — the control learns and stores corrections.
• Bend types incl. hemming, bumping (big radius), prebend; full punch/die/back-gauge finger libraries; tool segmentation.
• Profile-60S offline programming software available — program at a desk, not just at the machine.
